Gesipa

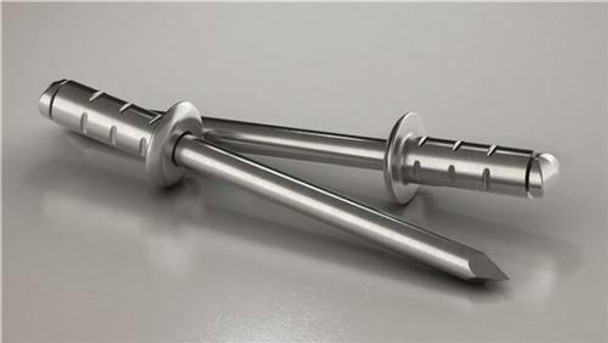

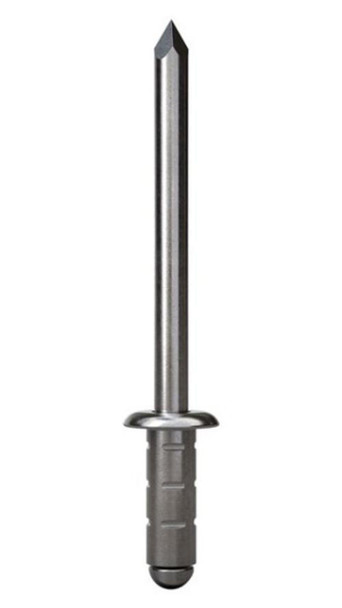

Gesipa PolyGrip Multigrip Blind Rivets Alu/Steel Dome Head

(No reviews yet) Write a Review
SKU:
P-GES1433826
  •  Gesipa PolyGrip Multigrip Blind Rivets Alu/Steel Dome Head
  •  Gesipa PolyGrip Multigrip Blind Rivets Alu/Steel Dome Head
  •  Gesipa PolyGrip Multigrip Blind Rivets Alu/Steel Dome Head
  •  Gesipa PolyGrip Multigrip Blind Rivets Alu/Steel Dome Head
  •  Gesipa PolyGrip Multigrip Blind Rivets Alu/Steel Dome Head
€92.02 - €152.83 Inc. VAT
€74.81 - €124.25 Ex. VAT

Description

Originally developed as a multigrip blind rivet, the GESIPA PolyGrip has gained a series of additional features that have made it a favourite when it comes to difficult and demanding applications in industrial environments. Whether they’re made from aluminium, steel or stainless steel, fitted indoors or outdoors, with hard or soft material to be joined, and even when critical hole diameters and tolerances apply – when everything else fails to make the grade, the GESIPA PolyGrip is almost always the perfect solution. A PolyGrip blind rivet has such a large clamping area that it can serve as a replacement for up to five different sizes of DIN standard blind rivets. Another advantage is its excellent bearing stress. This means that, since the rivet shank is deformed radially while the rivet is being installed, you can compensate for borehole inaccuracies, centre offset and differences in diameter, thus allowing you to create a tight connection with zero clearance. PolyGrip blind rivets have a secure spent-mandrel locking feature to prevent rattling of loose mandrels and to eliminate the risk of mandrels being lost. The PolyGrip blind rivets are also splash-proof under certain conditions. Thanks to their good bearing-stress properties and spent-mandrel locking, they are an economical alternative to closed blind rivets. PolyGrip blind rivets are an ideal choice for preventing the ingress of water through the connection. And because they form a wide closing head when installed, a high degree of tensile strength and thus security is ensured.

POLYGRIP BLIND RIVETS ALU/STEEL DOME HEAD 4 X 10 POLYGRIP BLIND RIVETS ALU/STEEL DOME HEAD 4.8 X 15
Grip range min. 0,50 mm Grip range min. 4,50 mm
Grip range max. 6,50 mm Grip range max. 11,00 mm
Rivet body length 10,00 mm Rivet body length 15,00 mm
Hole diameter 4,10 mm Hole diameter 4,90 mm
Head diameter 8,00 mm Head diameter 9,50 mm
Mandrel diameter 2,30 mm Mandrel diameter 2,70 mm
Rivet body diameter 4,00 mm Rivet body diameter 4,80 mm
Shear strength 1.060 N Shear strength 1.500 N
Tensile strength 1.680 N Tensile strength 2.300 N
Material rivet body Aluminium alloy Material rivet body Aluminium alloy
Material mandrel Steel, zinc-plated Material mandrel Steel, zinc-plated
Head shape Dome head Head shape Dome head
